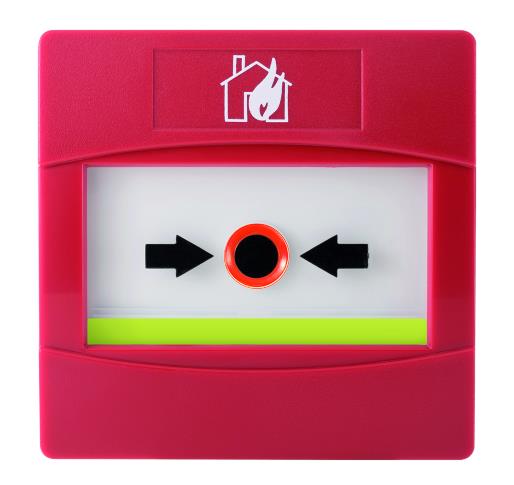

FDTWCP (Taurus Series)

The FDTWCP  is a fully intelligent device which is compatible with all Taurus Series Translator and Expander Modules. The unit has a resettable plastic element, which displays a drop down warning indicator when operated. A key is supplied with the MCP for reset and case opening. The product is powered by two lithium CR123A batteries with a typical life of 10 years. A transparent cover protects against accidental operation, whilst a weatherproof enclosure is available for use outdoors or in hostile environments.

• Bi-directional wireless communication
• Can be used with Taurus addressable and conventional translators
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅1 km in open air)
• 10 year battery life
• Utilises standard low-cost lithium battery technology
• Resettable element
• Easy scan & link programming option
• 3rd party approval to EN54-11 & EN54-25
• 5 years product warranty

Technical Features

• Operating frequency range: 868 – 870 MHz
• Max radiated power: 14dBm (25mW)
• IP rating 42
• Weight (without batteries): 160 g
• Batteries: 2x CR123A (3 V & 1.2 Ah)
• Batteries lifespan (typical): 10 years
• Dimensions: 88 mm x 87 mm x 61 mm
• Operating Temperature: -10°C to +55°C
• Max humidity (non condensing): 95% RH
