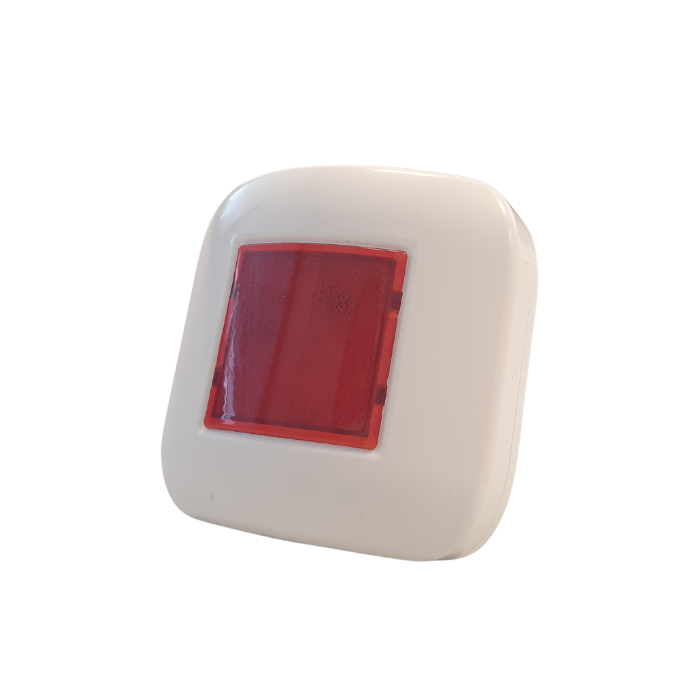

FDTWIR (Taurus Series)

The Taurus Wireless Remote Indicator is a low profile unit with a large red LED panel, which can be used to indicate a variety of events or alarms on the fire system. When used with the Taurus translator module the unit is fully programmable through the control equipment cause and effect. The device is ideal for indicating the activation of a detector which is located where visual alarm confirmation is difficult, such as a lift shaft, ceiling void or locked room. Indication of the operation of other part of the fire system is also possible.

• Pleasing low profile design
• Bi-directional wireless communication
• 5 year product warranty
• Utilises dual low cost standard lithium batteries
• Bright indicator panel (red)
• Compatible with Taurus Series translators and expanders
• 5 year expected battery life

Technical Features

• Operating frequency range: 868 – 870 MHz
• Max radiated power: 14 dBm (25mW)
• Batteries: CR123A ( £ V & 1.2 Ah)
• Batteries lifespan: 5 years
• Max humidity: 95% RH
• Operating temperature: -10°C to 50°C
• Weight without batteries: 60g
• Dimensions: 80x80x32 mm
